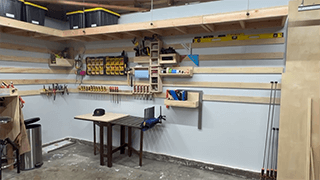

A woodworker can never have enough clamps. But storing them is a nightmare. They tangle. They fall. So, the biggest section of my new French Cleat wall was dedicated to The Clamp Station.
The Design: The Fingers
Standard clamps (F-style) have a sliding head.
- The Rack: I built a horizontal shelf with slots cut in it (like a comb).
- Usage: You slide the bar of the clamp into the slot, and the head rests on top.
- Capacity: My rack is 24 inches wide and holds 20 Bar Clamps.
The Screwdriver Block
Screwdrivers like to roll away.
- Design: A thick block of wood with holes drilled in it.
- Angle: I mounted the block at a 15-degree angle. This makes it easier to grab the handle and see the tip style (Phillips vs Flathead).
The Pliers Shelf
Pliers are top-heavy.
- Design: A simple strip of wood sticking out. You drape the pliers over the strip (one handle on each side).
- Result: They hang vertically, ready to grab.
The Layout Strategy
I organized the wall by specific "Zones":
- Assembly Zone: Clamps, Glue, Mallets. (Things I need when gluing).
- Measuring Zone: Tape measures, squares, pencils. (Things I need constantly).
- Drilling Zone: Drill, bits, drivers.
Pro Tip: Keep your most used tools at eye level. Put the weird stuff (hole saws, staple guns) up high or down low.
Conclusion
The wall is 80% full now. The floor is 100% clear. The efficiency gain is real. I don't spend 10 minutes hunting for a screwdriver anymore. I reach out, and it's there.
