The Law of Garages states: "Make a horizontal surface, and junk will fill it." My workbench was full. The floor was full. The only space left was Up.

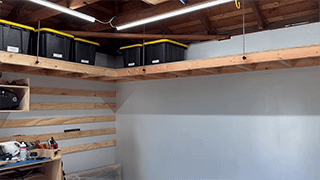

I decided to build a continuous shelf running the entire length of the garage wall, 7 feet off the ground. This is "Dead Space." By reclaiming it, I gained 20 feet of storage for bins, coolers, and seasonal decor.
Design: The "Torsion Box" ish
I didn't want ugly diagonal braces or brackets blocking the wall space underneath (I wanted to hang tools there). So the shelf had to be Cantilevered (floating). To hold heavy plastic bins, it had to be structural.
- Method: A 2x4 frame bolted to the studs, skinned with plywood.
Material & Tools
- 2x4 Studs: Standard framing lumber.
- 1/2" Plywood: For the top deck.
- 3.5" Lag Bolts: The secret sauce.
- Stud Finder: Mandatory.
The Build Process
Step 1: The Ledger Board
I found every stud in the wall. I marked a level line 7 feet up. I bolted a nice, straight 2x4 (the Ledger) to the wall using two lag bolts per stud.
- Strength: This board is holding the entire weight. If I hang from it, it shouldn't creak. I did hang from it. It was solid.
Step 2: The Joists
I cut short 2x4 pieces (18 inches long) to act as the "joists" sticking out from the wall.
- Attachment: I used pocket screws to attach them to the ledger board.
- Spacing: Every 16 inches.
Step 3: The Face Frame
I screwed a long 2x4 across the front of the joists to tie them all together. Now it looks like a ladder sticking out of the wall.
Step 4: Plywood Skin
I ripped plywood to 18 inches and screwed it to the top of the ladder frame.
- Rigidity: The plywood acts as a diaphragm. It stops the ladder from twisting. Once screwed down, the shelf became rock solid.
Conclusion
I loaded 12 heavy "Black and Yellow" storage totes onto it. No sagging. Because there are no legs or diagonal supports, the wall underneath is completely free for my French Cleat system. It is the most efficient way to add 20 sq ft of storage to a shop.
