Vacuum Veneer Pressing: Venturi vs. Electric Pump, and Why the Bag and Glue Decide the Outcome

The first time you price a vacuum system, the numbers look like a power ranking. A $17 venturi from Harbor Freight. A venturi generator starting at $56.50. A $344 auto-cycling kit. An electric pump kit at $629. Surely the $629 machine is the "strongest," and surely the cheapest option is a toy.

Neither is true, and the reason is a unit conversion most people skip.

The conversion that reframes everything

Vacuum veneering is measured in inches of mercury ("Hg), and CFM tells you nothing about maximum vacuum — it only describes how fast air moves. JoeWoodworker's FAQ is blunt about the minimum: 18" Hg to veneer at all, 21" Hg recommended for most adhesives. (Veneer Supplies' own product page says 17" Hg is the generally accepted minimum, so the honest range is 17–18; the two publishers disagree slightly.)

Now convert. JoeWoodworker's math: at 23" Hg on a 1'×2' platen, you get 3,312 lb of total force, from the rule of thumb vacuum level × 70 × platen square footage. A system pulling 25" Hg is applying roughly 12 psi — and because that pressure is spread evenly across the entire panel, it works out to somewhere between 1,700 and 1,800 lb per square foot. JoeWoodworker's own pages don't quite agree with each other — 1,800 lb/ft² on one, 1,785 on the V4 kit page, "approximately 1,700" on the bagging page — but the range is consistent.

Independent evidence backs the ballpark: Popular Woodworking measured a steady 24" Hg in their press and translated it to more than 10 lb of pressure per square inch inside the bag.

Here's the point: I have never built a clamp setup that delivered 1,700 pounds evenly across every square foot of a panel. Cauls, bar clamps, and hope deliver lumpy pressure with dry spots in the middle.

Maximum power is not the variable. The variable is duty cycle: how the system spends its time once it hits full vacuum.

Three answers to the duty-cycle question

The bare venturi ($56.50 to $139.50 for Vac Pro generators, per Veneer Supplies) has no moving parts, carries a lifetime warranty, and pulls up to 25.5" Hg at only 80 PSI of shop air. But a bare venturi runs your compressor the whole time it's pulling, and if you disconnect it and walk away, a leaky bag will bleed down and ruin the panel. Veneer Supplies says it plainly: vacuum bags do not close and make a perfect seal. A venturi alone is the right answer only if you're present and watching.

The auto-cycling venturi kit — Project: V4 at $344.50, regular $409.95 — shuts airflow to the venturi once it reaches your set point, so the compressor isn't running continuously. It runs on 12v DC, draws under 6.5 W while recharging, takes under 2 hours to build, and is adjustable from 10.5" to 25.5" Hg, with 21" Hg described as ideal for most veneering projects. It weighs 18 lb and runs at 68 dB on-cycle. If you have a compressor and want a set-and-monitor system, this is the seam between cheap and automatic.

One honest caveat: the noise, weight, and durability figures all come from the same publisher — Veneer Supplies and JoeWoodworker, who sell every one of these kits. There's no independent testing here. Read them as a seller's spec, not a shootout.

The bag is a pressure device, not a container

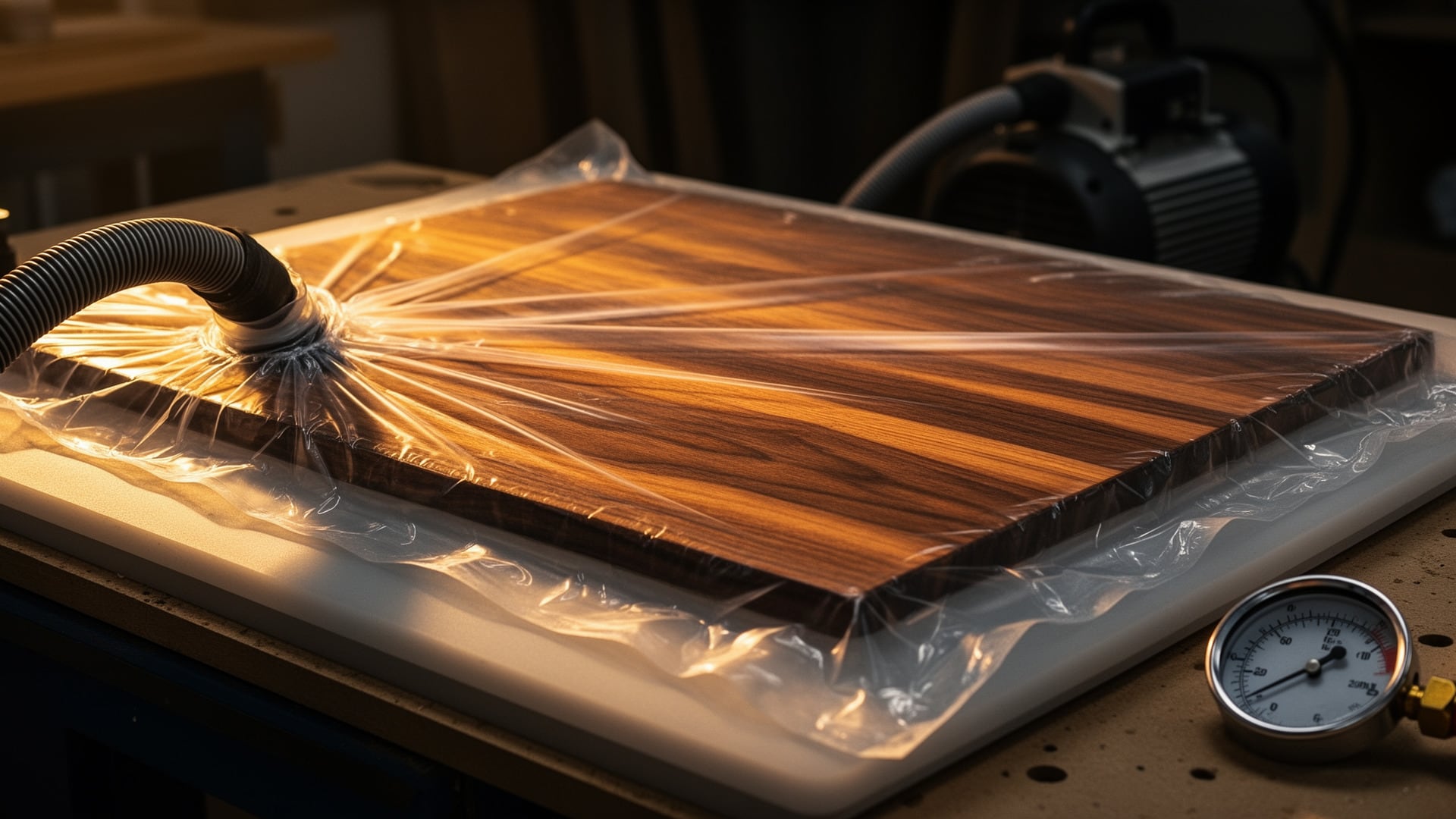

This is the mental shift that took me longest. The clamping pressure is a property of the bag, not the pump. A correctly set-up bag produces roughly 1,700 lb per square foot of evenly distributed pressure regardless of what's evacuating it. The pump's job is to create and maintain vacuum; the bag's job is to transmit atmospheric pressure evenly over the work.

That means bag quality decides whether the system works at all. JoeWoodworker's bagging guide ranks polyurethane bags as most durable, in 20 and 30 mil thicknesses; vinyl bags (27–30 mil) are less durable and less flexible but "quite suitable for occasional use by a hobbyist." I've come to believe the bag is where you shouldn't economize — a bag that leaks turns every panel into a gamble.

Bag care matters too: store it away from UV, keep sharp edges off the inside, and size it so the seams pull together under vacuum rather than apart. And never disconnect the vacuum source without monitoring. A leaky bag plus a shut-down pump equals failed veneer.

The glue sets the clock

The 10-minute rule is the hard constraint that shapes everything: JoeWoodworker's FAQ gives ten minutes as the average time to get a project under full vacuum before glue starts to set, and a bond made too late doesn't show up until you apply a finish. That's the cruelest failure mode in this craft — you find out after the work is done.

So your glue choice sets your pulldown deadline. Better Bond X-Press, a cold-press glue, has a 10–12 minute open time; a 60/40 water/glue primer coat on the substrate plus 60-grit scuff sanding stretches that to roughly 20 minutes. Don't work below 60°F or the glue may not cure. Yellow PVA glue — the stuff in every shop — is not recommended: it never fully hardens, allowing veneer creep with seasonal humidity, it bleeds through and discolors, and it sands poorly. Ultra-CAT PPR is heat- and water-resistant and ideal for bent laminations or thick, shop-sawn veneer, but it needs up to 6 hours of pressing and has a short pot life — you can thermoset it with a heating blanket over the bag.

The 10-minute window is also why pump choice feeds back into bag choice. JoeWoodworker's bagging guide ties maximum bag size to vacuum flow: 1 CFM handles a 4'×4' flat bag, 3 CFM handles 4'×9' flat, 5 CFM handles 4'×15' flat. (Their own two pages disagree slightly in the upper range, so treat those as rough.) A venturi typically reaches full vacuum faster than a comparable-CFM electric pump, and every reservoir you add is air space that must be evacuated. If your bag is too big for your pump, you lose the race against the glue clock. There's even a workaround: a Shop-Vac teed in through a ball valve pulls only about 1.75" Hg but removes bulk air, saving your main pump time.

Altitude, and one more ceiling

Two constraints get forgotten at purchase time. First, altitude: expect to lose about 1" Hg for every 1,000 ft above sea level, per JoeWoodworker — a pump pulling 25.5" Hg at sea level manages only around 20.5" Hg at 5,000 ft. Still above the minimum, but your margin thins.

Second, more vacuum is not better. Per JoeWoodworker's How to Choose page, setting vacuum above about 21" Hg doesn't improve the bond — it only makes the vacuum source work harder and risks glue-line starvation. The pressure ceiling is 25.5" Hg; the useful ceiling is 21".

What I'd buy, and why

My read: if you veneer occasionally and have a compressor, the Project: V4 at $344.50 is the interesting middle — automatic enough to protect a panel, cheap enough to justify. If you veneer rarely and will stand there watching, a venturi generator from $56.50 does the same physics for less.

Buy for duty cycle, buy a bag that doesn't leak, and pick a glue whose open time matches your pump. Those three decisions are the whole system. Everything else is marketing.
