Diode Laser Fume Extraction: Venting, Filtering, and Materials You Shouldn't Cut

The board is done. Sanded, oiled, and honestly nicer than you expected when you glued it up. What it needs now is a name and a date, and if your hand-lettering is anything like mine — I have been quietly apologizing for mine for years — a small laser starts to look like the fix. Glowforge sells its Spark at $899.00 with what its shop page describes as a "Blue, 6-watt, solid-state diode laser." That is real money, but not unreachable money for a shop that already owns a planer.

Then you run your first job on oak, and the room fills with something that smells like a campfire that got into the trash. The question you thought you had already answered — what do I do about the smoke? — turns out to be three separate questions, and the market cheerfully sells you one product as though it answered all three.

The Window or the Filter, and Only One of Them Is a Purchase

Read the spec sheet before you read the reviews. Glowforge's Craft Series tech specs list the ventilation requirement as "Ventilation with either the Glowforge Personal Filter, or an open-able window within 8 feet." The Spark's own product page says the same thing in different words: the filter, or a window within eight feet with an exhaust hose.

In Glowforge's own framing, the window is the default and the filter is the paid alternative to it: one of those options is a window, and the other is a purchase. Hold onto that, because everything downstream follows from it.

So: job one is moving smoke out of the enclosure and out of the room. Job two is filtering what you genuinely cannot vent. Job three is refusing certain materials outright, where neither of the first two is an acceptable answer. They cost wildly different amounts and they are not substitutes for each other.

Job One: Getting It Out, and the Number That Actually Matters

This is a fan-and-duct problem, and it is the cheap one. An AC Infinity CLOUDLINE T4 is $119.00 for 205 CFM at 223 Pa of static pressure and 28 dBA; the 6-inch T6 is $149.00 for 402 CFM at 503 Pa. OMTech, writing about desktop laser exhaust, puts the working range at "typically between 200 and 400+ CFM, depending on your laser's wattage." So a $119 fan is in the neighborhood already.

The catch is that free-air CFM is not what you get once there's hose in the path, and xTool proves it with its own two products. xTool's SafetyPro IF2 inline fan is $179.00 and moves 140 CFM at 1300 Pa. xTool's plain 6-inch inline fan moves 410 CFM at 442 Pa. Nearly triple the air, one-third the pressure. Those are two different tools: one pushes hard through restriction, one moves volume through an easy path. Buying the high-volume fan and then feeding it four metres of crinkly hose gets you neither.

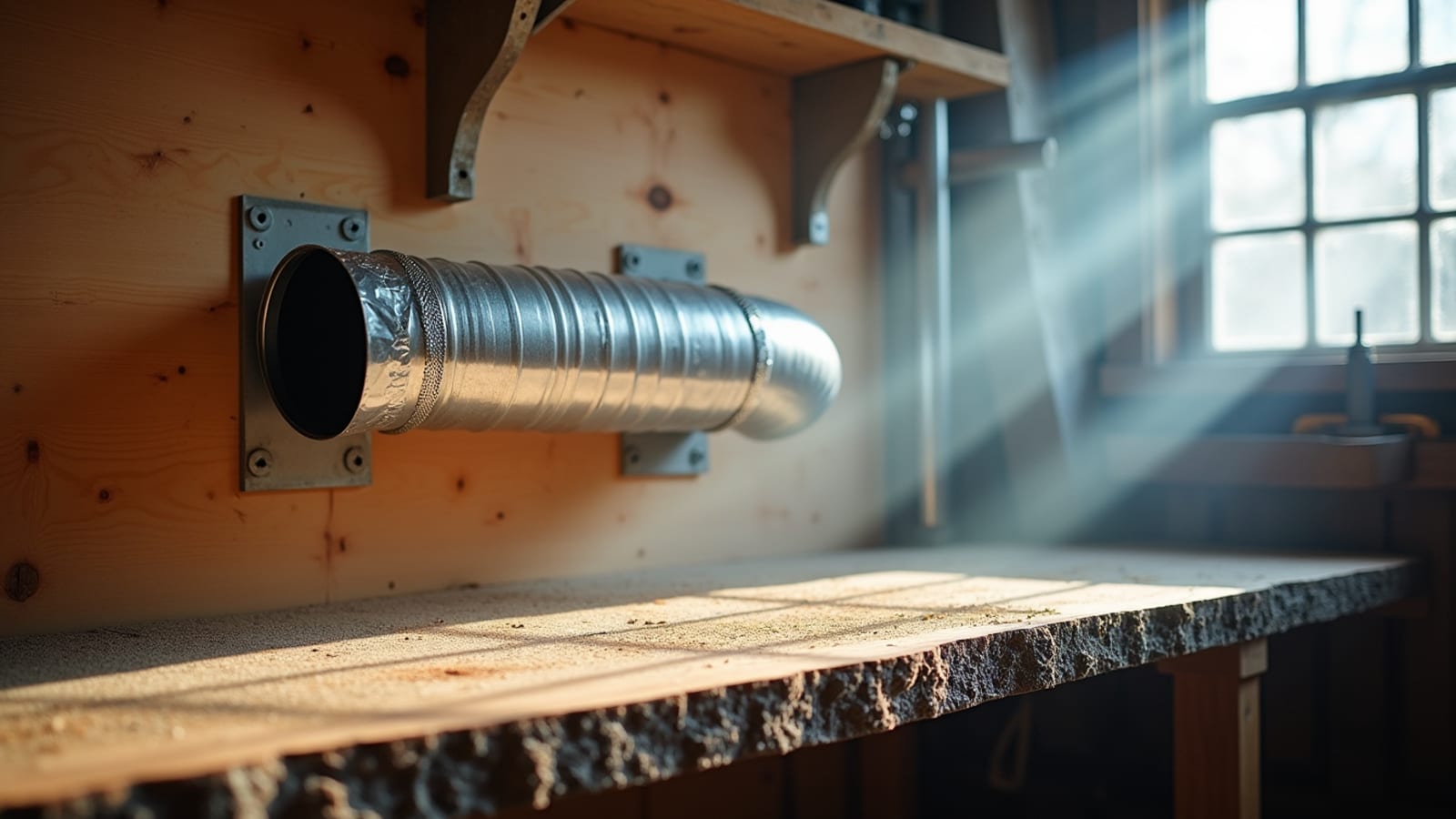

OMTech's install guidance is the practical version: keep runs "as short and straight as possible, as every bend reduces airflow," use rigid metal or good semi-rigid aluminum, avoid "corrugated flexible plastic, as it creates resistance and is highly flammable," and seal with metal foil tape rather than standard duct tape. MIT's EHS laser guidance is blunter about the whole category: "In most cases, only specially designed exhaust systems generate enough static pressure to support most laser cutters."

Two more things, both free. OSHA's Technical Manual says a capture hood should sit no more than 1.5 duct diameters from the source — nine inches on a 6-inch duct — with capture velocity no lower than 50 fpm. Your laser's enclosure is already doing most of that work for you, which is the good news. The bad news is the other OSHA line, echoed by OMTech: air leaving the room must be replaced. A sealed garage with a 400 CFM fan and one small window port will not deliver 400 CFM. Crack a door on the far side of the room.

Job Two: Filtering Is the One With a Meter Running

Here is the number nobody puts on the box. Glowforge is the only vendor I found that publishes cartridge life in operating hours, which makes it the only one where you can do honest arithmetic. Its Craft Laser Filter is $399.00 with $129.00 replacement cartridges rated to "up to 100 hours of printing." The Performance Laser Filter is $1,295.00 with $249.00 cartridges, same 100-hour figure.

Then apply Glowforge Support's own correction. That 100 hours came from a test using an 11-minute print mixing cutting and engraving; used only for cutting, life "may be roughly half as long," and used only for engraving, "more than twice as long."

How you actually work	Performance cartridge	Craft cartridge
Engraving only (200+ hr)	about $1.25/hr or less	about $0.65/hr or less
Mixed "average print" (100 hr)	$2.49/hr	$1.29/hr
Cutting only (about 50 hr)	about $4.98/hr	about $2.58/hr

Cut plywood for four hours on a Saturday with the Performance filter and you have spent roughly $20 on filter media. Not on wood. On air.

Venting out a window pays for itself before you finish your second project.

The industrial tier is instructive rather than tempting. Donaldson BOFA rates its AD 350 at "350 m³/hr or 206 CFM at 96 mbar," and per Solder Connection, a BOFA distributor, the consumables run every 12 months in active use — with the sting that "the carbon section requires replacement within 12 months regardless of use due to moisture absorption." At MatterHackers' prices, the combined HEPA/carbon filter is $514.00 and the DeepPleat pre-filter $187.00: $701 a change, on the calendar. Run it hard and that's pennies an hour. Run it two hours a week, like most of us, and it's closer to $6.74 an hour, because the clock keeps running when the laser doesn't. Occasional users pay the most.

And the units don't even line up across brands. xTool publishes filter life in calendar terms only — pre-filter 7–15 days, HEPA 3–6 months, main filter 2–3 months, $99.00 for the replacement kit — with no operating-hours figure and no stated duty cycle. You cannot compare that to Glowforge's 100 hours without inventing a number. OMTech publishes no interval at all on its $19.99 carbon filter page.

One more market oddity, from xTool's own FAQ: the $999.00 AP2 purifier moves 150 m³/h, and xTool notes the P3 machine needs 238 m³/h, so "the AP2's airflow cannot meet this demand." That's the maker saying its own filter is undersized for its own machine.

What the Carbon Cannot Catch

This is the part that changed how I think about the whole category, and the authority is the EPA rather than any laser company.

From EPA's Residential Air Cleaners: A Technical Summary: source control is "usually the most effective strategy," and "air cleaning has proven useful when used along with source control and ventilation, although it is not a substitute for either method." Then the specific: activated carbon "has the potential to remove most hydrocarbons, many aldehydes, organic acids… However, activated carbon is not especially effective against oxides of sulfur, hydrogen sulfide, low molecular weight aldehydes (e.g., formaldehyde), ammonia, and nitrogen oxide."

Also from EPA: adsorption is reversible, so a thin, saturated carbon layer "can become a source of previously adsorbed pollutants," and the "effectiveness of many consumer-grade systems with small amounts of activated carbon is unknown." In one EPA calculation, assuming 150 ppb in and 50 ppb out at 100 CFM across a two-foot-square filter, breakthrough "would occur quickly in 6-inch deep carbon filters used for odor control." Six inches of carbon. Your cartridge is not six inches of carbon.

And carbon monoxide — which a laser burning wood produces, because MIT EHS is right that laser smoke "can generate the same combustion by-products as a fire" — is, per EPA's Guide to Air Cleaners in the Home, "not readily captured using currently available residential gas-phase filtration products." OSHA's PEL for CO is 50 ppm TWA; NIOSH recommends 25 ppm. If your filter recirculates into a closed room, a CO alarm on the wall is my own conclusion from those two facts, not a cited rule. It's a cheap conclusion to act on.

Worth knowing too: EPA lists "No effectiveness standards" for adsorbent media, with ANSI/ASHRAE 145.1 and 145.2 carrying no rating metric.

Job Three: The Materials Where the Answer Is "Don't"

The sentence that settles it is in Glowforge's own Air Filter user manual (v0.8): "Non-laser compatible materials may contain harmful or toxic chemicals that are not treated by the Glowforge Air Filter and could cause injury or death." MIT EHS says the same thing to institutional users: if filters recirculate into the space, "do not cut any material that you are not sure is appropriately captured by the filtration system."

Buying a filter does not expand your material list. According to the filter's maker, it does not expand it at all.

Emory's TechLab prohibited-materials sheet names the chemistry, and it's the most useful single page I've seen for a hobbyist:

• PVC and vinyl — chlorine gas. xTool, which sells plenty of craft materials, says vinyl in a laser produces "highly toxic chlorine gas and hydrochloric acid." Epilog names hydrogen chloride and vinyl chloride, and warns of "irreversible damage to your machine." Glowforge prohibits it outright.
• ABS — hydrogen cyanide, plus fire risk.
• Delrin (polyoxymethylene) — formaldehyde and hydrogen fluoride. Emory: "We do not have the equipment necessary to cut this safely."
• Polystyrene foam, foam core, Depron — benzene gas.
• Pleather and artificial leather — "often made from PVC."
• Anything labelled flame-retardant — often contains bromine.

Trotec's unsuitable list agrees, adding PTFE, PVB, carbon fiber, and any material with halogens, epoxy, or phenolic resins.

The vinyl case deserves its own note, because "but I have good ventilation" feels like it should cover it. OSHA's PEL for hydrogen chloride is a ceiling of 5 ppm — not a time-weighted average, not to be exceeded at any moment. NIOSH's recommendation is 0.3 ppm TWA with a 2 ppm ceiling. A ceiling limit is the regulator's way of saying dilution over a shift is not the control strategy.

If you have an unlabelled plastic offcut and you're tempted: Purdue's chemistry demonstration sheets describe the Beilstein copper-wire test, where a heated copper wire touched to the sample and returned to the flame burns green if the plastic contains chlorine, as PVC does. Purdue gives no safety caveat; I will. You are deliberately decomposing a small amount of a chlorinated polymer, so do it outdoors, briefly, and don't lean over it. Green flame means it never goes in the laser.

On leather, pick vegetable-tanned and skip the argument. Trotec lists chromium(VI) leather as unsuitable; Emory prohibits chrome-tanned leather and notes "most colorful leathers are unsafe to lasercut." The underlying chemistry, from Chen and Hedberg in Contact Dermatitis (2024), is that chrome tanning uses trivalent chromium, but hexavalent Cr(VI) "can be formed under some circumstances" including heat and UV — their worst-case protocol was 24 hours at 80 °C. I couldn't find a study that measured Cr(VI) coming off a laser, so I won't pretend one exists. Vegetable-tanned is also what Glowforge tests its filters against, which tells you something.

MDF Is Where All Three Jobs Collide

MDF is the pivot material for a diode owner, since MDF is squarely in the diet a 450 nm diode can actually cut. (xTool notes that 450 nm light "cannot be absorbed by clear acrylic and other transparent materials," so wood, ply, MDF, leather, and paper are where a diode lives.)

Line up the three jobs on it:

Venting works. A fan doesn't care what the molecule is.

Filtering works worst here, and costs most. Per EPA, carbon is "not especially effective" against low molecular weight aldehydes, formaldehyde named explicitly. And Glowforge's blog reports over 1,000 prints in 1/8-inch Proofgrade plywood per cartridge versus "a couple hundred prints or less" for MDF plywood or Draftboard — roughly five times the media cost per job, derived from their own two figures. The user manual goes further: "MDF and Proofgrade Draftboard are not recommended, as they will cause the filter cartridge to fill quickly." Draftboard is Glowforge's own product.

Refusing is a defensible position. Emory prohibits formaldehyde-containing MDF and HDF outright: "Extreme charring. Formaldehyde is a carcinogen." IARC classified formaldehyde Group 1, carcinogenic to humans, in Monograph Volume 88, on sufficient evidence for nasopharyngeal cancer. And note the gap in the exposure limits: OSHA's PEL is 0.75 ppm TWA, while NIOSH recommends 0.016 ppm — about 47 times stricter. "Under the legal limit" and "safe" are not the same conversation for this chemical.

So the recirculating carbon box is simultaneously the most expensive option per MDF job and the least effective against the specific gas MDF is famous for. Vent it outside, or use solid wood — which is EPA's own source-control example, incidentally: "solid wood or alternative materials can be used in place of pressed wood products that are likely to be significant sources of formaldehyde."

From My Workshop to Yours

One more finding, because it's the one that costs nothing and everyone ignores. A UCLA team — Munoz, Schmidt, Suffet and Tsai, in ACS Chemical Health & Safety — measured a 60 W CO₂ laser cutting acrylic with a BOFA extractor running. The extractor handled the gas phase fine: methyl methacrylate, the only compound identified, averaged 0.5 ppm indoors, "well below the 100 ppm permissible exposure limit set by OSHA." Reassuring. But ultrafine particles, 27.4–36.4 nm, spiked to around 2,821 and 3,057 particles per cm³ when the lid was opened, and total concentrations kept climbing "for at least 20 min after the completion of a cut."

That was a CO₂ laser on acrylic, not a diode on plywood, and I'm not going to pretend the numbers transfer — essentially all the emissions measurement I could verify was done on CO₂ lasers, not diodes. But the behavioural lesson does transfer: the exposure moment is when you open the lid and lean in to admire your work.

Hence the purge, on which three sources disagree for three different reasons, and you should know why. MIT EHS says leave filtration on 10–15 seconds after the job, for odor and off-gassing. The UCLA authors argue for "a few minutes," on exposure grounds. Glowforge's manual says one minute of running per minute of printing — an hour after two half-hour jobs — because it extends cartridge life. Pick based on what you're solving.

In order, then, and this is the whole article: vent outside if you possibly can, because a $119 fan beats a $1,295 filter on both cost and chemistry. Buy the filter only if a window genuinely isn't available, and buy it knowing you've signed up for $1.29 to $4.98 an hour. Never buy a filter to unlock a material — per its own manual, it unlocks nothing. Put a CO alarm in the room if you're recirculating. Walk away for a minute after each job instead of opening the lid immediately; go find out what's for dinner. And when the mystery plastic shows up in the offcut bin, hold a hot copper wire to it before you hold a laser to it.
